Bruce Firmware: Offensive Security Tools for ESP32

Oct 11, 2026 · 5 min read

\2

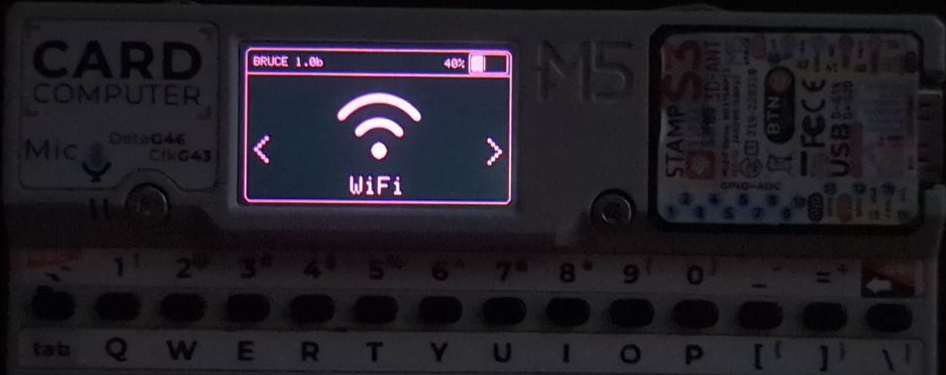

Bruce main menu displayed on a supported ESP32 device

What You Will Build

Bruce is an open-source ESP32 firmware that turns a supported handheld device into a portable offensive security platform. After a single flash you have access to WiFi attack tools (beacon spam, deauthentication, evil portal, ARP spoofing and poisoning), Sub-GHz radio scan and replay, RFID and NFC read-and-clone, IR remote capture including TV-B-Gone, Bluetooth Low Energy scanning and device spam, BadUSB payload execution, FM broadcast, a 2.4 GHz NRF24 jammer, and a built-in JavaScript interpreter — all driven from the device's own screen and buttons.

The project describes itself as built to make Red Team operations fast and portable. It draws direct inspiration from the Flipper Zero workflow: load a payload file from an SD card, select a target, run the operation. The difference is you are running on hardware you already own or can source yourself, and every line of firmware is open-source under AGPL-3.0.

\2

\2

\2

\2

Hardware and Software You Need

Supported boards — pick one that fits your budget and use case:

• M5Stack Cardputer (has a physical keyboard, good for beginners)

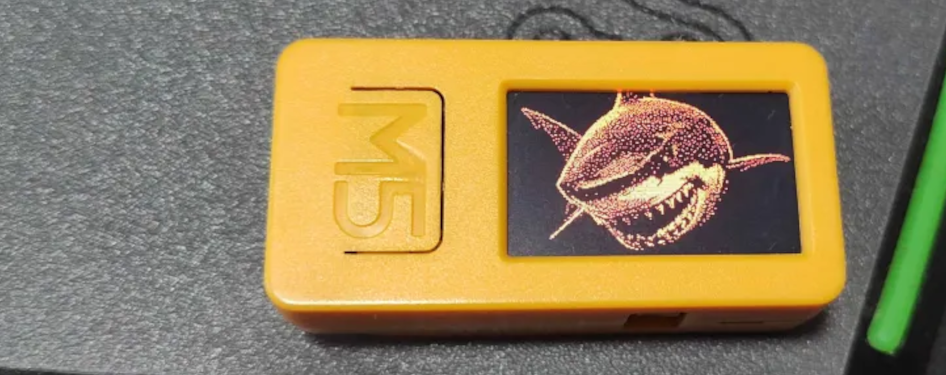

• M5Stack M5StickC PLUS or PLUS2

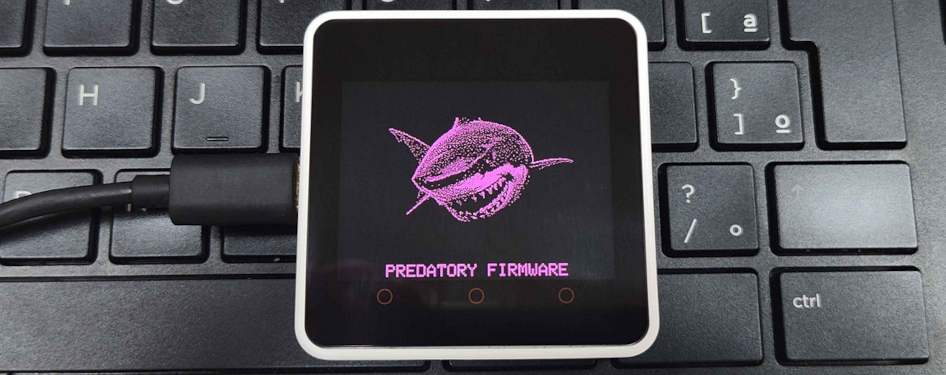

• M5Stack M5Core BASIC, M5Core2, or M5CoreS3/SE
• Lilygo T-Embed, T-Embed CC1101, T-Display-S3, T-Deck, T-Watch-S3, or T-LoRa Pager

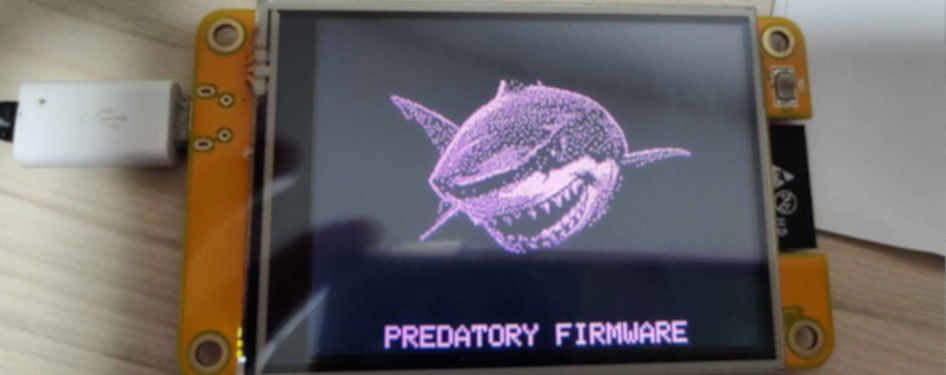

• JCZN CYD-2432S028
• Elecrow 24B or 3.5" ESP Terminal
• ESP32-C5 DevKitC-1
• Bruce RF Reaper — the project's own devkit (ESP32-S3, 16 MB Flash, 8 MB PSRAM) with CC1101, NRF24, NFC, IR, GPS header, and microSD all on-board, plus Flipper Zero header compatibility

Optional add-on modules (support varies by board; check the README compatibility table):

• CC1101 Sub-GHz transceiver for Sub-GHz scanning and replay
• NRF24 module for 2.4 GHz operations
• PN532 or PN532Killer module for RFID/NFC

Software:

• A USB cable and a Chromium-based web browser for the web flasher (nothing to install), or
• Python with esptool.py for local flashing
• The correct Bruce binary for your device from the GitHub Releases page

Typical use cases

How Bruce Works

Bruce is written in C++ and compiled as a separate binary for each supported board. Pin assignments, display drivers, speaker codecs, and available peripherals are all baked in at compile time, which is why selecting the correct binary matters — a Cardputer build will not work correctly on a T-Deck.

At runtime, the firmware presents a menu-driven interface on the device's screen. Every major radio and protocol stack — WiFi, BLE, Sub-GHz RF via CC1101, NRF24, IR, RFID/NFC, FM — is available as a selectable menu item. Payload files such as Ducky-compatible BadUSB scripts, raw RF captures, and custom IR sequences are loaded from a microSD card or LittleFS internal storage, matching the Flipper Zero file format where possible. A built-in JavaScript interpreter lets you write and run custom scripts directly on the device without recompiling firmware.

ESP-NOW is used for the Connect menu, which lets two Bruce devices exchange files and commands wirelessly without an access point. The WebUI feature starts a local web server so you can manage SD card and SPIFFS files from a browser on the same network.

Flash Bruce onto Your Device

Option 1 — Web Flasher (easiest, no tools required)

Open a Chromium-based browser and navigate to https://bruce.computer/flasher. Connect your device via USB, select your board from the dropdown, and click Flash. The site handles driver negotiation and puts the device into download mode automatically.

Option 2 — esptool.py (local, works on any OS)

Download the correct Bruce-<device>.bin from the Releases page. Then run:

esptool.py --port /dev/ttyACM0 write_flash 0x00000 Bruce-<device>.bin

Replace /dev/ttyACM0 with your actual serial port (COM3 on Windows, /dev/cu.usbserial-... on macOS). Replace Bruce-<device>.bin with the exact filename for your board.

Option 3 — M5Stack tools

If you already use M5Launcher to manage an M5Stack device, install Bruce over-the-air directly from the launcher. Alternatively, open the m5burner tool, search for "Bruce", select the listing uploaded by "owner" (official builds have photos), and click Burn.

After flashing, the device boots straight into the Bruce main menu. Navigate with the buttons or touchscreen to reach any feature.

Ideas to Extend It — and Limitations to Know

Ways to take it further:

• SD card payloads: Load Ducky-compatible BadUSB scripts, Sub-GHz replay captures, or custom IR sequences from a microSD card to run pre-built chains without navigating the menu each time.
• JavaScript scripting: The built-in interpreter lets you combine features or automate sequences that the fixed menu does not expose.
• Wardriving: Pair a GPS module with the WiFi scanner to log access points to a Wigle-compatible file, then upload it later via the SD card manager.
• ESPNOW coordination: Use the Connect menu to send files and commands wirelessly between two Bruce devices without an access point — useful for multi-device field operations.
• RF REAPER devkit: If you want every major feature working without soldering add-on modules, the RF REAPER ships with CC1101, ST25R3916 NFC, NRF24, IR, GPS header, and microSD on a single board.

Limitations to check before you buy:

• Feature availability varies significantly by board. CC1101, NRF24, FM, microphone input, BadUSB, RGB LEDs, and the speaker codec are not supported on every device — verify the compatibility table in the README against your specific board before purchasing hardware.
• RFID tag emulation is listed as not yet implemented.
• FM Spectrum, Hijack Traffic Announcements, and Mousejack are listed as planned but incomplete.
• Bruce is designed for authorized security research and testing. Using its offensive features against networks or devices you do not have permission to test is illegal in most jurisdictions.

Facts in this article come from the project's public README and GitHub metadata at the time of writing. Images belong to their respective owners and link back to the original source.
